Motherboard B760M H DDR4
Motherboard B760M H DDR4
Type : Motherboard
Tags : Motherboard,
Collections : INTEL MOTHERBOARDS, MOTHERBOARDS, PC COMPONENTS, Special,
Availability : In Stock
Share
مذربورد بي 760 ام اتش من GIGABYTE،
المميزات:
- عامل الشكل Micro ATX.
- دعم لسوكت Intel LGA1700.
- يدعم رقائق انتل جيل 14th/ 13th /12th.
- منفذين رام Dual Channel DDR4 3200MHz.
- منفذ كارت شاشة PCI Express 4.0x16.
- منفذ شبكة GbE LAN.
- الابعاد 23×21.5سم

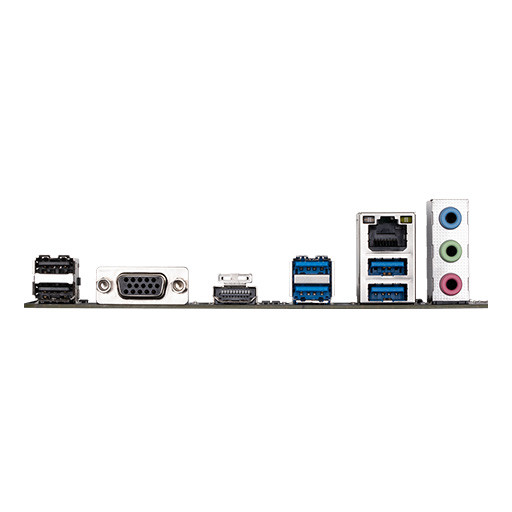

المنافذ:
2 USB 2.0/1.1 ports
1 D-Sub port
1 HDMI port
4 USB 3.2 Gen 1 ports
1 RJ-45 port
3 audio jacks
منافذ Internal I/O:
1 24-pin ATX main power connector
1 8-pin ATX 12V power connector
1 CPU fan header
2 system fan headers
1 RGB LED strip header
2 M.2 Socket 3 connectors
4 SATA 6Gb/s connectors
1 front panel header
1 front panel audio header
1 S/PDIF Out header
1 USB 3.2 Gen 1 header
2 USB 2.0/1.1 headers
1 Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 serial port header
1 Clear CMOS jumper
